Product Description

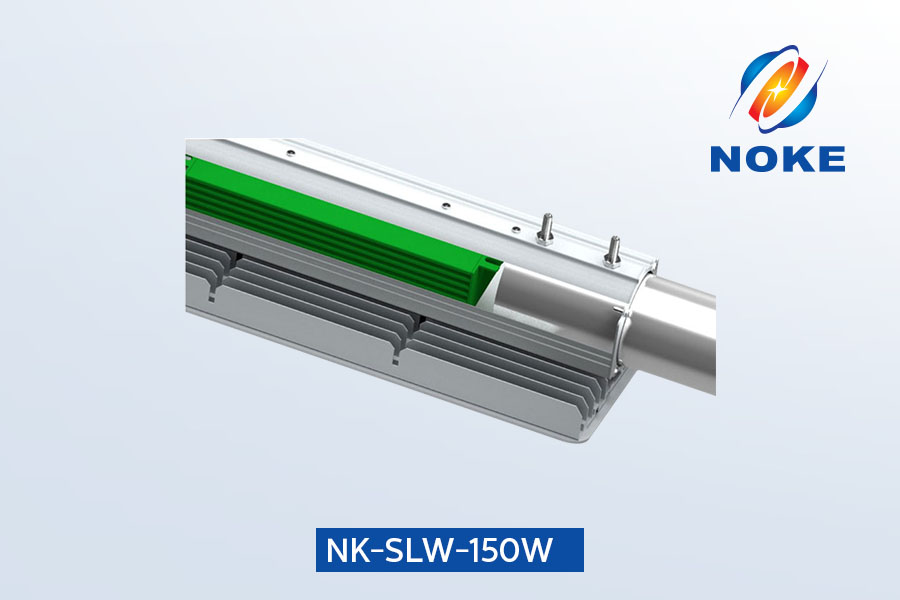

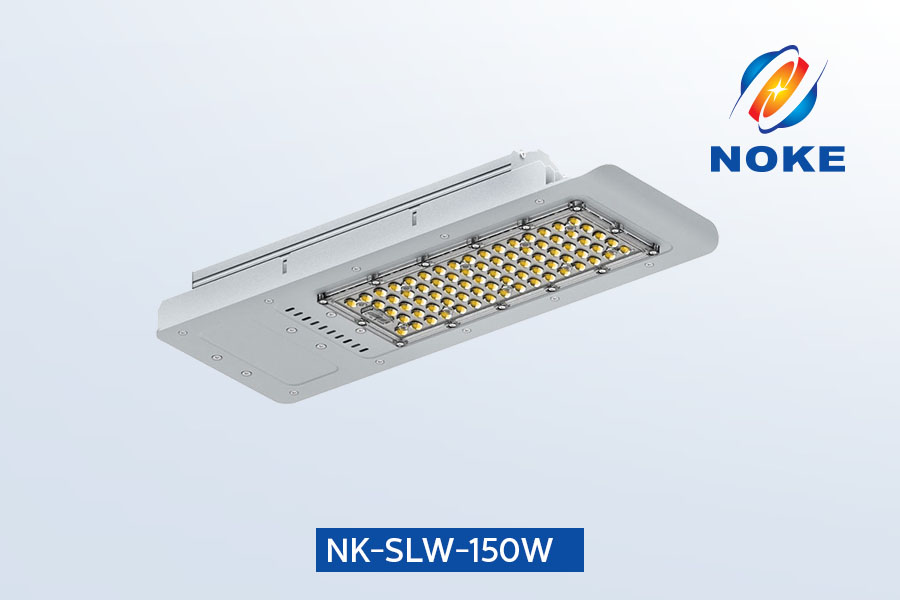

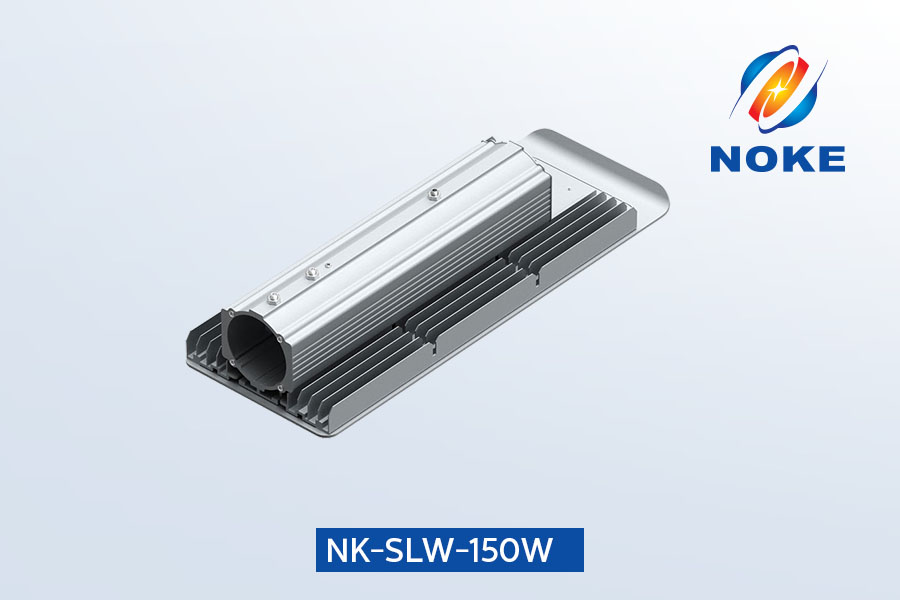

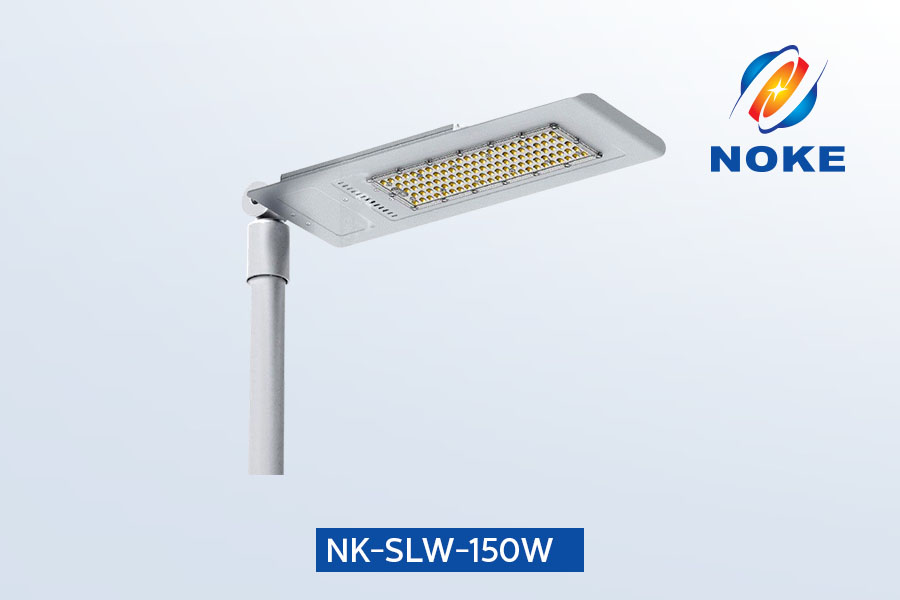

Name: LED Street Light Housing

Model No: NK-SLW-150W

Certificated by: ICON ICON

LED by: PHILIPS

Powered by: mw

Share this product:

chat button

Product Details

Specifications
Model No.  NK-SLW-150W Lamp Power  150 W
LED luminous efficiency 140~160 lm/W Equivalent 400 W  high pressure sodium lamp
Lamp Rated luminous efficiency 140 lm/W Lamp Total Flux(Tj=60℃,Ta=25℃) 21000 lm
Input Voltage  AC100–277V Mounting height(m)  10–14 m
Lamp Efficiency   >93% Total Harmonic Distortion (THD)   <15%
Power Factor (PF)   >0.97 Color Rendering Index (CRI)   >80 Ra
Beam Angle Horizontal Axis: 140°                           Vertical Axis: 80° Color Temperature   3000k—7000K
Waterproof  IP65 Warranty 3–5 Years

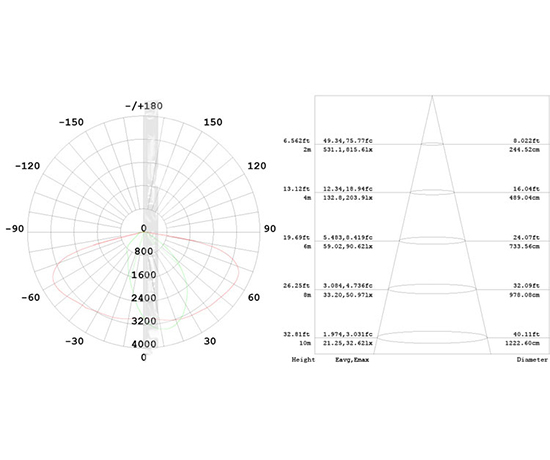

Light Distribution Curve   Rectangular Beam Lifespan >50,000hrs
Working Temperature   -30℃ ~ +50℃ Lamp Body and Lampshade Material   Aluminum Alloy and PMMA

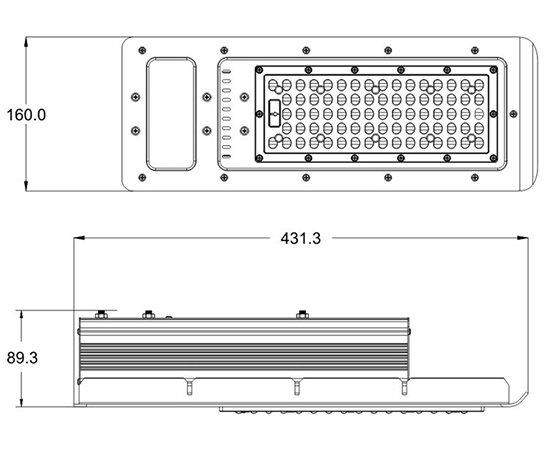

Lamp Size  630 x 215 x 90mm Net weight 5 kg
Application place Highways, freight terminals, squares, golf courses, parks, car parks, industrial parks, leisure and tourism scenic spots.
Notes  Dimmable or non dimmable , Body sensor dimming, sensor switch, Illuminated sensor switch , Connect the solar control system,

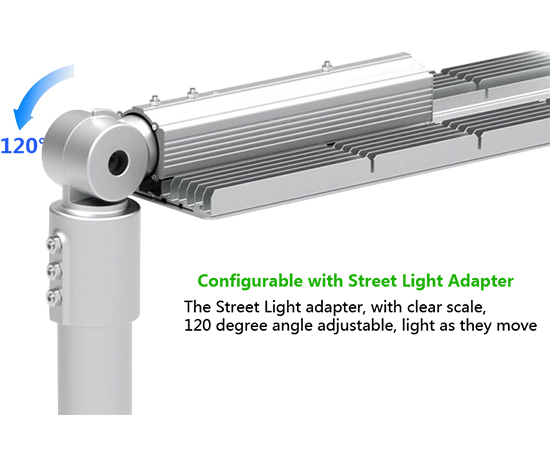

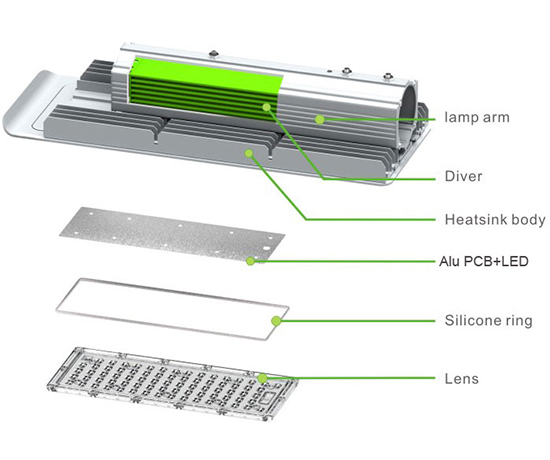

Parameter

parameter-1parameter-2parameter-3parameter-4

Application

application
