Product Description

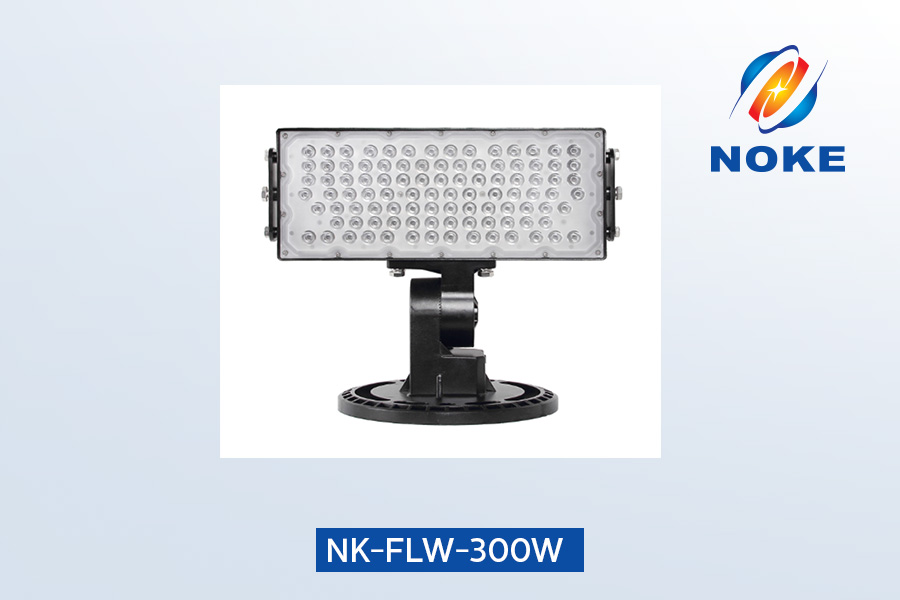

Name: LED Flood Light

Model No: NK-TLW-300W

Certificated by: ICON ICON

LED by:        led philips

Powered by: mwOR High Efficiency Driver

Share this product:

chat button

Product Details


Super Brightness LED Modular Flood Light 300w Application in Advertising Board​


  • Double packaged Bridgelux chip inside, 140-155lm/w Efficiency.
  • Meanwell HLG driver, PF>97%,THD<10%, Quality assurance.
  • Patent Anti-glare PC cover, transimittance 90%.
  • Modular design, can work and replaced seperately. Lower the maintaining cost.
  • Teflon wire inside,3*1m2 cable
  • Thermal grease conductivity>3.8. good thermal function.
  • CRI 80 to meet different project requet
  • Fast delivery time 5-10 days.

2. Technical data:

Code Model NK-300W
1 Input voltage 90-305VAC 47-63Hz
2 Input Current 0.27A(240V)
3 Power 400W
4 Output voltage 36V
5 Output current 1.5A
6 Power Factor >0.98
7 Luminous Efficiency ≥90%
8 Beam Angle 80x155degree
9 Luminous Flux 44000lm
10 CRI 80
10 IP Rate IK65
11 CCT 2700-70000K
12 LED Brand 5050 PHILIPS
13 LED QTY 98
14 Driver Brand Meanwell /Moso
15 Material Pure Aluminum
16 Working Temperature -40℃ – 60℃

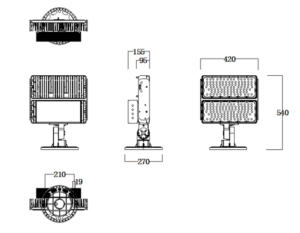

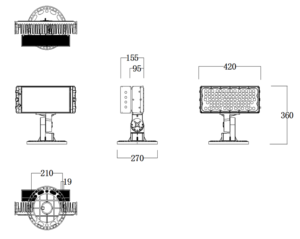

17 Length 730mm
18 Width 840mm
19 Height 120mm
20 N.W 9KG
21 Warranty 5 years
