Product Description

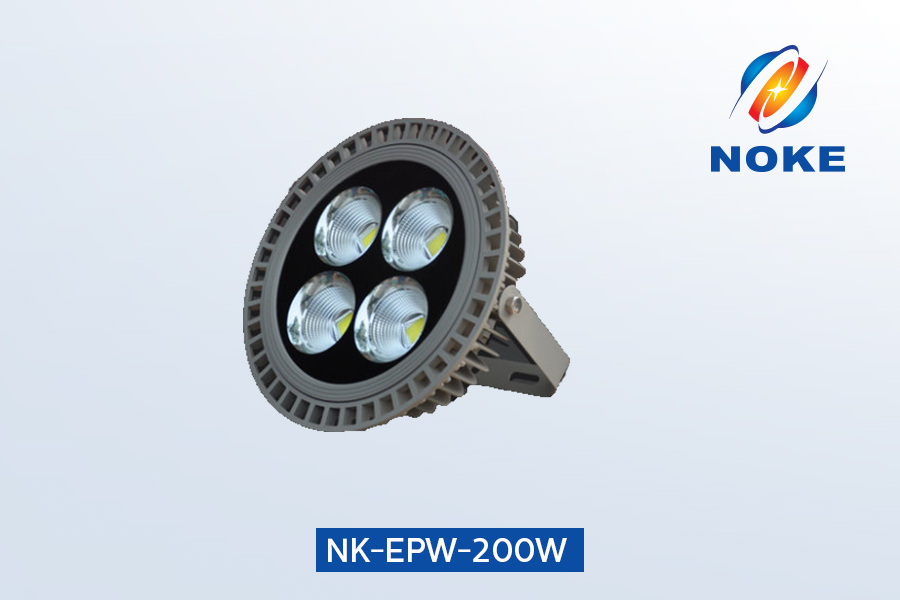

Name: LED Explosion Proof Light

Model No: NK-EPW-200W

Certificated by: ICON ICON

LED by:  BRIDGEX EPISTAR

Powered by: mwOR High Efficiency Driver

Share this product:

chat button

Product Details

Specifications
Item No.  NK-EPW-200W Lamp Power  200 W
LED luminous efficiency 120~140 lm/W Equivalent 600 W  high pressure sodium lamp
Lamp Rated luminous efficiency 110 lm/W Lamp Total Flux(Tj=60℃,Ta=25℃) 22000 lm
Input Voltage   AC100–277 V Frequency Range   47—63Hz
Lamp Efficiency   >93% Total Harmonic Distortion (THD)   <15%
Power Factor (PF)   >0.95 Color Rendering Index (CRI)   >80
Beam Angle    45°, 120° Color Temperature   3000k—7000K
Waterproof  IP65 Warranty 3–5 Years
Light Distribution Curve   Rectangular Beam Lifespan >50,000hrs
Working Temperature   -30℃ ~ +50℃ Lamp Body and Lampshade Material   Aluminum Alloy and Tempered glass
Lamp Size ¢400X150mm Net weight 9.5 kg
Application place Commercial lighting, industrial lighting, warehouses, Petrol station, production workshops, freight terminals, stadiums, building facades,
Notes Explosion levels : Exd  II BT6, Class I,  Dimmable or non dimmable , Body sensor dimming, sensor switch,  Ceiling Mount, Suspend , Wall installation
Parameter

NK-EPW3-150W (5)

Application

applicationapplication-1
