Product Description

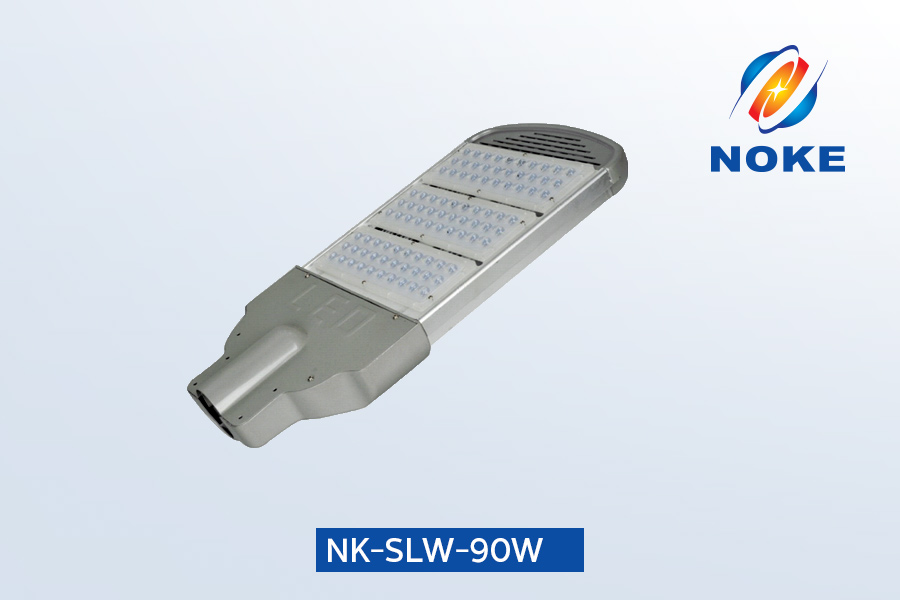

Name: LED Street Light

Model No: NK-SLW-90W

Certificated by: ICON ICON

LED by:  BRIDGEX EPISTAR

Powered by: mwOR High Efficiency Driver

Share this product:

chat button

Product Details

Specifications
Model No.  NK-SLW-90W Lamp Power  90 W
LED luminous efficiency 120~140 lm/W Equivalent 300 W  high pressure sodium lamp
Lamp Rated luminous efficiency 110 lm/W Lamp Total Flux(Tj=60℃,Ta=25℃) 9900 lm
Input Voltage  AC100–277V Mounting height(m)  8–10 m
Lamp Efficiency   >93% Total Harmonic Distortion (THD)   <15%
Power Factor (PF)   >0.97 Color Rendering Index (CRI)   >80 Ra
Beam Angle Horizontal Axis: 120°                           Vertical Axis: 60° Color Temperature   3000k—7000K
Waterproof  IP65 Warranty 3–5 Years
Light Distribution Curve   Rectangular Beam Lifespan >50,000hrs
Working Temperature   -30℃ ~ +50℃ Lamp Body and Lampshade Material   Aluminum Alloy and PMMA
Lamp Size  595 x 310 x 75mm Net weight 6.8 kg
Application place Highways, freight terminals, squares, golf courses, parks, car parks, industrial parks, leisure and tourism scenic spots.
Notes  Dimmable or non dimmable , Body sensor dimming, sensor switch, Illuminated sensor switch , Connect the solar control system.
