Product Description

Name: LED Street Light

Model No: NK-SLW-100W

Certificated by: ICON ICON

LED by:   philips

Powered by: mwOR High Efficiency Driver

Share this product:

chat button

Product Details

Specifications
Model No.  NK-SLW-100W Lamp Power  100 W
LED luminous efficiency 140~160 lm/W Equivalent 300 W  high pressure sodium lamp
Lamp Rated luminous efficiency 140 lm/W Lamp Total Flux(Tj=60℃,Ta=25℃) 14000 lm
Input Voltage  AC100–277V Mounting height(m) 8–10 m
Lamp Efficiency   >93% Total Harmonic Distortion (THD)   <15%
Power Factor (PF)   >0.97 Color Rendering Index (CRI)   >80 Ra
Beam Angle Horizontal Axis: 140°                           Vertical Axis: 80° Color Temperature   3000k—7000K
Waterproof  IP65 Warranty 3–5 Years
Light Distribution Curve   Rectangular Beam Lifespan >50,000hrs
Working Temperature   -30℃ ~ +50℃ Lamp Body and Lampshade Material   Aluminum Alloy and PMMA
Lamp Size  420 x 300 x 95mm Net weight 7.3 kg
Application place Highways, freight terminals, squares, golf courses, parks, car parks, industrial parks, leisure and tourism scenic spots.
Notes  Dimmable or non dimmable , Body sensor dimming, sensor switch, Illuminated sensor switch , Connect the solar control system,
Parameter

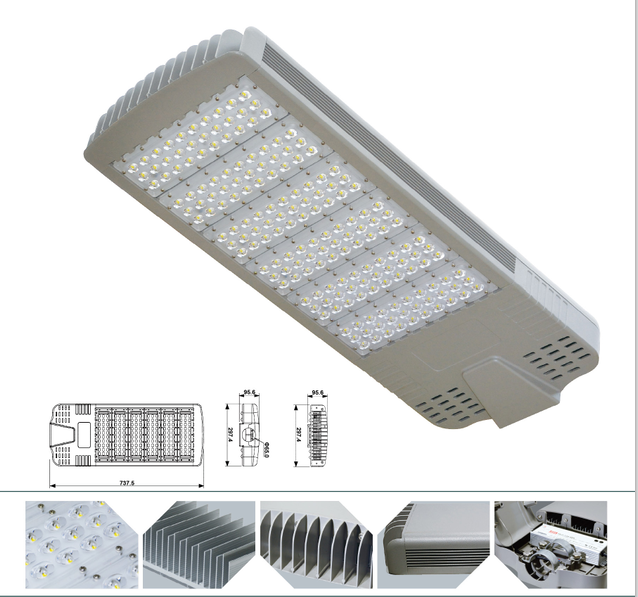

For-Street-Highway-and-Parking Lot Led Area Light

Application

led street light
