Product Description

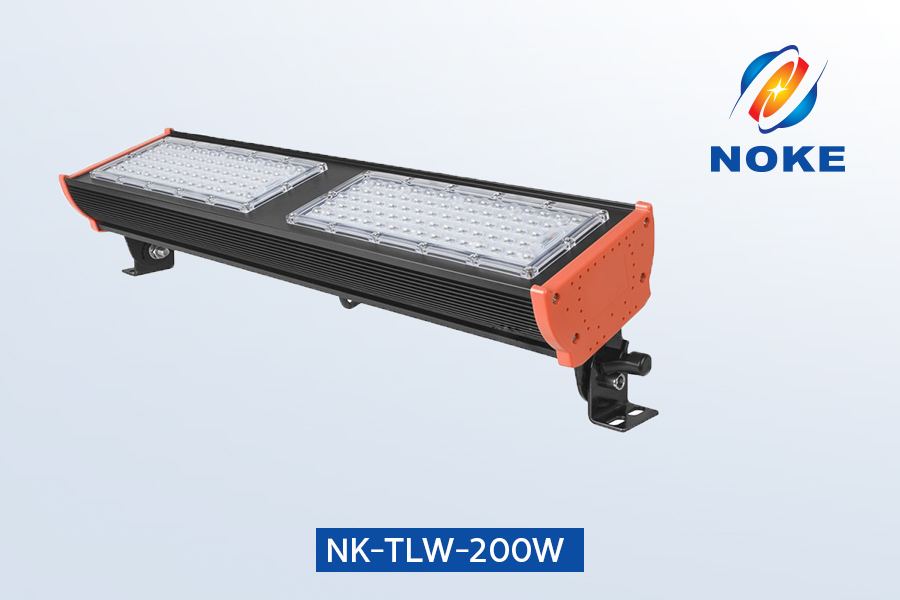

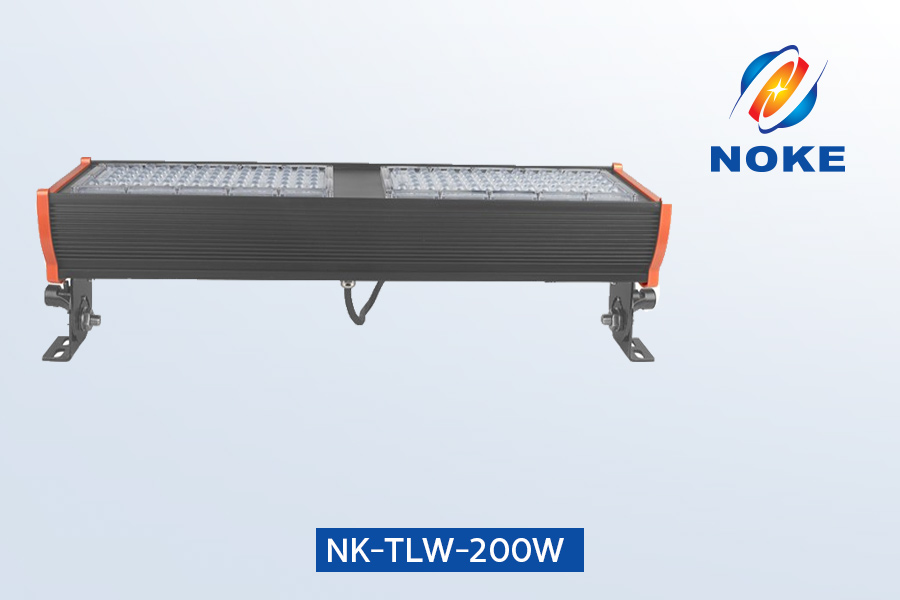

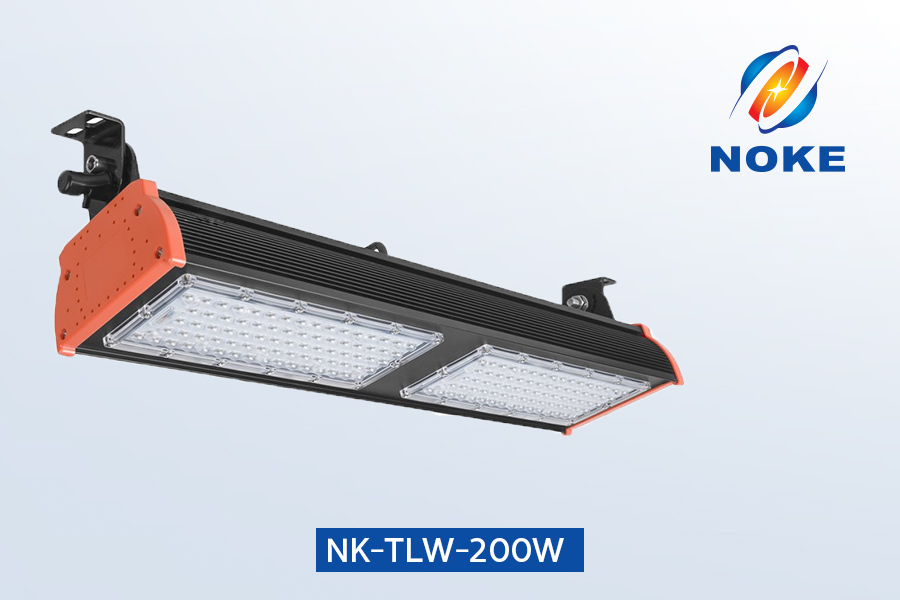

Name: LED Linear Light

Model No: NK-TLW-200W

Certificated by: ICON ICON

LED by:   philips

Powered by: mw

Share this product:

chat button

Product Details

Specifications
Item No.  NK-TLW-200W Lamp Power  200 W
LED luminous efficiency 140~160 lm/W Equivalent 600 W  high pressure sodium lamp
Lamp Rated luminous efficiency 140 lm/W Lamp Total Flux(Tj=60℃,Ta=25℃) 28000 lm
Input Voltage   AC100–277 V Frequency Range   47—63Hz
Lamp Efficiency   >93% Total Harmonic Distortion (THD)   <15%
Power Factor (PF)   >0.95 Color Rendering Index (CRI)   >80
Beam Angle     140° x 80° Color Temperature   3000k—7000K
Waterproof  IP65 Warranty 3–5 Years
Light Distribution Curve   Rectangular Beam Lifespan >50,000hrs
Working Temperature   -30℃ ~ +50℃ Lamp Body and Lampshade Material   Aluminum Alloy and PMMA
Lamp Size 542X210X180mm Net weight 6.5 kg
Application place Commercial lighting, industrial lighting, warehouses,  production workshops, freight terminals, stadiums, building facades,
Notes  Dimmable or non dimmable , Body sensor dimming, sensor switch,  Ceiling Mount, Suspend , Wall installation
Parameter

parameter-6 parameter-5 parameter-4 parameter-3 parameter-2 parameter-1

Application

application-1 application application-2parameter-6 parameter-5 parameter-4 parameter-3 parameter-2 parameter-1
